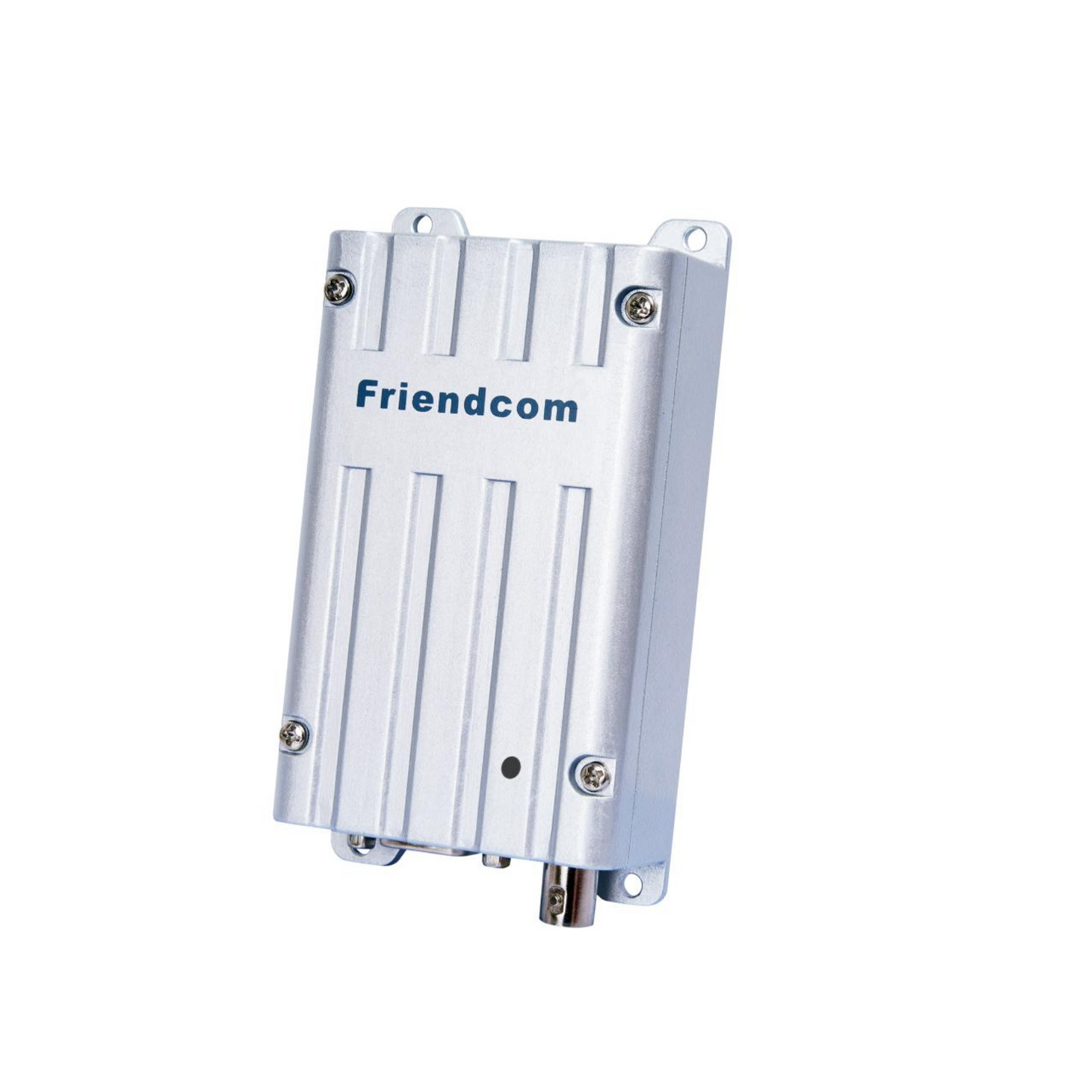

FC-302 UHF/VHF Data Radio

This product does not include a modem. If a modem is required, please purchase it separately. If any adjustments to the product are required, please reach out to info@friendcom.us

FC-302 is a PLL synthesized 5-watt FM data transceiver , which is designed for data transmission and voice communication. It adopts two-point modulation technology to make good low frequency response that makes data and POCSAG application possible. The radio has fast start-up time and makes it a competitive choice for 1200-19200bps rate data application in 12.5KHz and 25KHz channel.
Compact dimension and wide range DC support make it flexible to use.

Models:

FC-302 VHF: 136-174MHz
FC-302 U0: 400-440MHz
FC-302 U1: 430-470MHz
FC-302 U2: 450-490MHz

FC-302 Datasheet

FC-302 Software Instruction V1.4

FC-302 User Manual V2.0

FC-302-GMSK&4FSK Modem Manual V2.0
